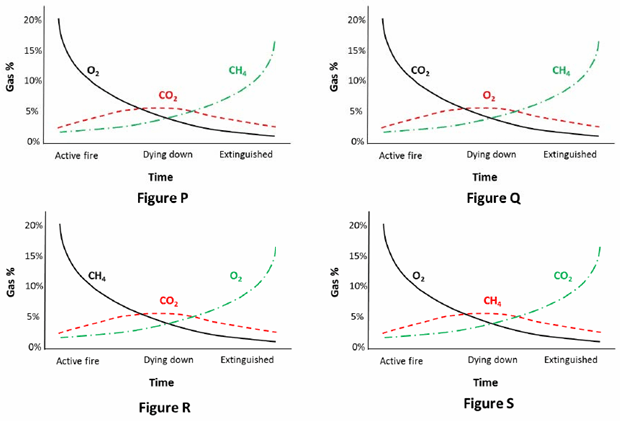

The figures shown represent the analysis of gas samples collected from a sealed off area in
a coal mine over a period of time. The best representation of the progressive change of
gaseous environment inside the sealed-off area is
In Battle Environmental Evaluation System (BEES) of Environmental Impact Assessment (EIA), “air pollution” has a Parameter Importance Unit (PIU) value of 52. The Environmental Quality (EQ) score of a project with respect to air pollution was 0.8 before the project implementation and it becomes 0.6 after the project implementation. The difference in the “Environmental Impact Unit (EIU)”, before and after the project implementation is _____.
A system consists of four components connected functionally in a parallel configuration. The reliability of the individual components is 0.40, 0.60, 0.50 and 0.40. The system reliability, is _____.
A vehicle is moving at a speed of 12 m/s on a level road. It applies emergency brakes and starts to skid without rolling in a straight path. The deceleration of the vehicle is constant after braking and it comes to rest at a distance of 15 m. Assuming, , the coefficient of kinetic friction between the tyres and road is _____.
In a bord and pillar panel six shuttle cars, each of 10 tonne capacity, are deployed to transport coal produced by two continuous miners to a belt conveyor. Each shuttle car on an average carries 80% of its rated capacity and makes 7 round trips in an hour. The belt conveyor has a capacity such that the effective material cross section area is of 0.09 m² and runs at a speed 1.1 m/s. The broken coal has a bulk density of 1.2 tonne/m³. The ratio between the production and the capacity of the belt conveyor, in percent is
A dump truck moves up an incline of 5° with constant tractive force of 800 kN. The gross mass of the truck is 250 tonne and its rolling resistance is 545 kN. The acceleration due to gravity is 10 m/s². The time required, in s, to reach a speed of 3.3 m/s from 1.0 m/s is
In a longwall panel, face is supported with shields of yield capacity 460 tonne per shield. The distance from the canopy tip to coal face is 0.15 m when the support is fully advanced. The depth of web is 0.60 m. The shields are set skin to skin at the face. Length of the canopy of the shield is 3.25 m and width 1.5 m. Setting capacity is 80% of the yield capacity. The setting resistance at the maximum and minimum span of the coal face, in tonne/m², respectively are
For a dumpy level, the bubble tube has sensitivity of 40′′ for one division. While taking a staff reading at a distance of 60 m, the bubble is out of centre by 2 divisions. The error in staff reading in mm is _____.
On an old plan of scale 1:1000, leasehold area of a mine is now measured as 802 cm² using a planimeter. The plan is found to have shrunk, such that the original line of 10 cm is now measured as 9.8 cm on the plan. True lease hold mine area, in m², is _____.
CO is released from a point source on a level ground at a rate of 25 g/s. The average wind speed is 5 m/s. The dispersion coefficients are 150 m and 200 m in horizontal and vertical directions, respectively, at a receiver station located on the ground along the downwind direction. Assuming the plume follows Gaussian dispersion model, the concentration of CO, in μg/m³, at the station is _____.
